Description

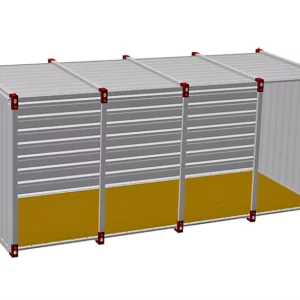

Specification of Storage container
- Container is made out of galvanized steel sheets 0,75 mm thick.
- Supportive profiles are made out of galvanized steel sheets 2,0 mm thick.

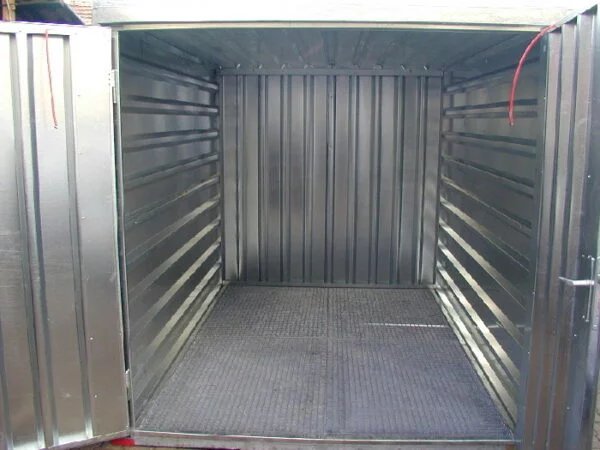

- The floor consists of a hot-dip galvanized drip tray made of 2.25 m thick sheet metal with a grate.
- The entire container can be disassembled into a transport position to reduce shipping costs.
- The container is equipped with a double door with a handle, lock and stops in the front wall.
- The entrance profile with the door open is 1920 x 1950 mm.
- It is possible to store a maximum of 2000 l of substances in the container.
- Only flammables with a flash point higher than 100 ° C can be stored in the container .
- The volume of the collection tank at the container is 275 liters.
- This unit is fitted with a pair of air grilles, which keeps the unit ventilated if the temperatures decrease rapidly. Each air grille is made out of galvanized steel (1mm thick) and has 20 vent holes with a total surface of 55cm².
Handling
It is possible to move the assembled container with crane or forklift truck. To hang it on a crane, it is advised to connect each chain to the four outside red brackets. This is advised only for unit sizes 1 meter - 3 meter.
Protection of Container
Each unit can be fitted with an anti-vandal bar for extra security, at an extra cost. It is also possible to fit the unit with a sensor and an alarm.
Maximal Load
- by handling with crane - 1500 kg | by handling with forklift truck - 3000 kg
- of floor surface - 500 kg/m² | of floor surface with stiffening - 300 kg/m²
