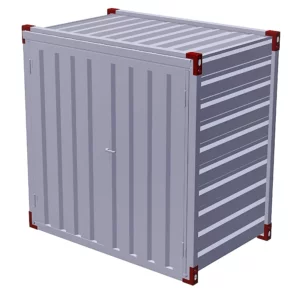

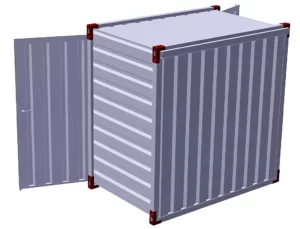

1375 x 2200 mm Storage Unit - Steel Base

Description

Specification of Storage container

• Container is made out of galvanized steel sheets 0,75 mm thick.
• Supportive profiles are made out of galvanized steel sheets 2,0 mm thick.
• Floor is made out of hot galvanized steel.
• Assembled container can be dismounted to transport position to reduce cost of transportation.

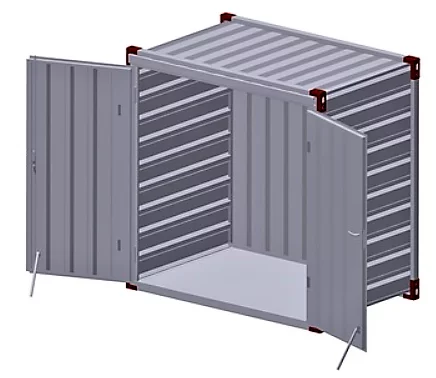

• Container has double-wing door with handle, lock and door stoppers in front side.
• Enhance profile when door is fully opened is 1930 x 1930 mm.

Handling

It is possible to move the assembled container with crane or forklift truck. To hang it on a crane, it is advised to connect each chain to the four outside red brackets. This is advised only for unit sizes 1 meter - 3 meter.

Protection of Container

Each unit can be fitted with an anti-vandal bar for extra security, at an extra cost. It is also possible to fit the unit with a sensor and an alarm.

Maximal Load

• by handling with crane - 1500 kg | by handling with forklift truck - 3000 kg
• of floor surface - 500 kg/m² | of floor surface with stiffening - 300 kg/m²
